Overhaul Parts Kit For Jaguar Pre HE V12 XJ12 XJS With Bosch 0280150035 / Lucas 73143B Injectors - Kit 106

This is our most comprehensive overhaul kit for Jaguar pre HE XJ12 XJS fitted with Bosch 0280150035 / Lucas 73143B injectors.

Contained is everything required to refurbish your injectors at home, including our ethanol-resistant fuel hose to help futureproof your classic.

It has been designed to suit early series Bosch EV1 L type Jetronic injectors with a double arrow headed inlet port and fuel rail with single arrow rail port, requiring ferrule fix to injectors and hose clips fix to the fuel rail.

PLEASE REFER TO THE ADDITIONAL PHOTO OF THE DOUBLE ARROW HEADED INLET PORT TO HELP IDENTIFY YOUR INJECTORS.

⚠️ Why You Must Replace Your Old Fuel Hoses Now

UK fuel now contains up to 10% ethanol. Older polyester-reinforced hoses are not ethanol-resistant — they degrade from the inside out, becoming brittle and prone to cracking. A leaking fuel hose near a hot engine is a fire risk.

Don’t just replace the injector hoses — check and replace all hoses from the tank to the feed and return lines.

The kit can be supplied for the 0280150014 / 0280150023 injectors and the ferrules will be exchanged for additional hose clips — please add a note at checkout if you require the kit for the 0280150014 / 0280150023.

Contents

Kit 106 contains:

12 x Aramid reinforced fuel hose cut to exact length

12 x Hose ferrules (or clips)

12 x Hose clips

12 x Filter baskets

12 x Mid-body clamping seals

12 x Inlet manifold seals

12 x Pintle caps

Also included are our instruction sheets, carefully put together to help you with the task.

Terms

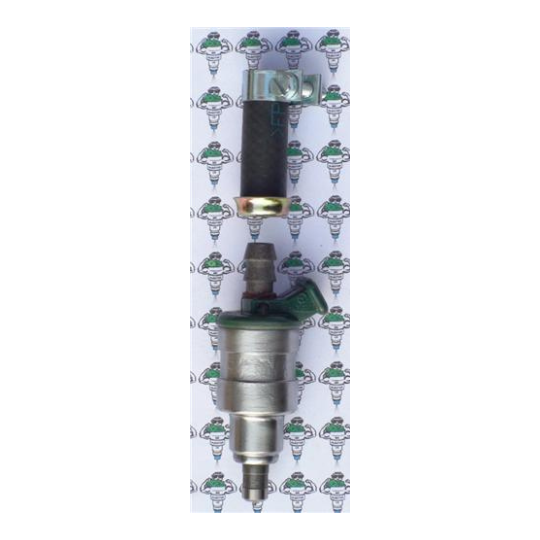

The injector in the picture is for illustration and identification purposes only and is not included in the sale.

These are exacting items; the hose and clip combination have been perfectly matched to the original injector parts.

About the Hose Included in This Kit

All Mr Injector UK kits use Cohline aramid-braided fuel hose — the same hose used in aerospace and aviation applications.

· Construction: FPM inner tube, ECO rubber intermediate layer, braided aramid fibre reinforcement, ECO rubber outer cover

· Working pressure: 10 bar | Bursting pressure: 50 bar

· Temperature: -40°C to +125°C (up to +150°C for short periods)

· Meets multiple international standards: DIN 73379-B1, SAE J30R9, BMW GS 93010, DBL 6256.70, GME 08 007, VW TL 524 24 — providing superior resistance to degradation and fuel permeation compared to standard hoses

· 100% ethanol resistant — suitable for E10 fuel, bio-diesel (RME), and all commercially available fuels

· Classic vehicle compatible

All kits and parts orders dispatched by Master Injector UK.
